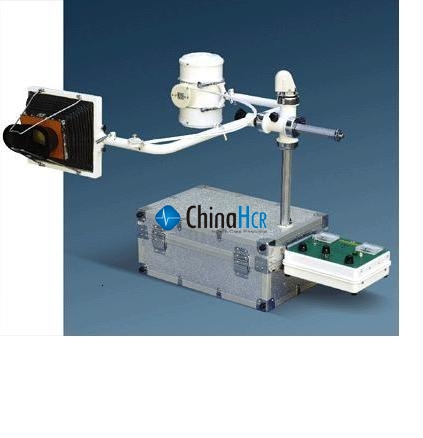

The unit is shock-proof, ray-proof, single-focus and self-rectified X-ray unit. It applies to medical fluoroscopy and radiography on mouth, carity bone, heart, skull as well ascontraceptivering.


 Maximum rating:

For fluoroscopy:       75kVp 3-5mA (uncontinuous use)

                     routine fluoroscopy condition: 65kVp 3mA

For radiography:       75kVp 10mA 6sec, (interval time 3 minutes)

Power supply:          AC: 220V, 50Hz,1kVA

Current:               for fluoroscopy 2A (uncontinuous)

                      for radiography 6A (instantaneous)

Size of screen:         203mm X 254mm

Range of movement:  up-down: 220mm, left-right: 130mm,

                   tube turining angle: vertical 360o,horizontal 320o

Volume:                    500 X 310X180mm

Weight:                    25Kg
