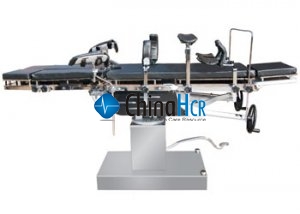

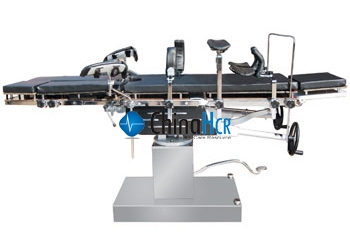

This table is designed for surgical procedures of the head, neck, thorax and abdomen, and extremities as well as tor gynaecological, oto-thinolaryngological and orthopaedics operations.It can be raised or lowered hydraulically by means of an oil pump. Varions positions can be controlled on the head. Leg section can be opened 90· and disassemble. It is most for the urological operation, Chassis inside & outside cover of model are stainless steel。

Specifications: Length 2040mm Height 800～1040mm

Width: 480mm

Main Technial Parameters: Trendelenburg ≥30° Head Section Raised from the Horizontal ≥30°

Reversed Trendelenburg ≥50° Head Section lowered from the Horizontal ≥30°

Latera Tilt ≥20° Leg section Lowered from the Horizontal ≥90°

Back Section Raised From the Horizontal ≥80° Kidney Bridge Elevation ≥120mm

Back Section lowered From the Horizontal ≥8° Leg section Opened ≥50°

Lowered from the Horizontal ≥90°
